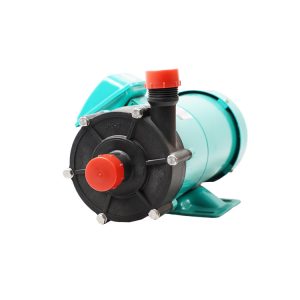

Small Magnetic Drive Pump
We can offer the OEM/ODM services of magnetic drive pump. The product can be customized according to your personalized requirements. Please offer your design documents or tell us your ideas and our R&D team will do the rest.
CLEY TECH is a professional company to sell high-quality Magnetic drive pumps, Miniature Diaphragm pumps, Metering Pumps and Household Pumps for more than 20 years.we are specialized in the research and development of Frequency conversion constant pressure multistage Pumps, Variable frequency multistage centrifugal Pumps, Miniature dc Pumps, Intelligent gas-fulid mix vacuum Pumps, micro diaphragm Pumps, Vertical frequency conversion multistage Pumps and miniature precision motors.
We have varied from testing equipment with high quality. Our company insists on the principle of doing the best to satisfy the customer’s demands of excellent quality.
Each series of product we produce have high level of technology. Not only guarantee the quality of products and supply the perfect After-sale Service, but also own the good reputation of reliability and advancement of the products in the whole world under the good quality and process control system. All products got the CE certification of EU and the CCC certification of Pump motors for the national compulsory product. At present, the products we produce had sold in whole our country and exported to the America, EU, Asia market etc. The good reputation of our product of market were our biggest advantage of development.
Best Mag Drive Pump Manufacturer in China
As one of the leading pump manufacturers in China, Cley Tech. has a full range of pumps for all kind of usage, such as magnetic drive pumps, micro pumps, brewing pumps, direct drive DC pumps, stainless steel booster pumps and bellow dosing pumps. Contact with us now!
Technical Parameters
Please check the following specifications to choose the right excavator grapple.
Specification
Features
Factory View
Specification
| Model | Tube interface | Thread interface | Max.capacity (L/min) 50Hz/60Hz | Max.Head (m) 50Hz/60Hz | Stand capacity | Specific gravity | Motor | ||||
| Inlet(mm) | Outlet(mm) | Out-inlet(inch) | Tube(mm) | Capacity(L/min) 50Hz/60Hz | Head(m) 50Hz/60Hz | Output(w) 50Hz/60Hz | Phase | ||||
| MP-6R | 14 | 14 | * | * | 8/9 | 1/1.4 | 2.8/5 | 0.8 | <1.2 | 6 | 1 |
| MP-6RZ | 14 | 14 | * | * | 5.5/6 | 2.1/2.7 | 3.2/4.5 | 0.8 | <1.1 | 6 | 1 |
| MP-10R | 14 | 14 | * | * | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-10RN | 14 | 14 | * | * | 11/12 | 1.5/2.1 | 5/8 | 1 | <1.1 | 6 | 1 |
| MP-15R | 16 | 16 | * | * | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RN | 16 | 16 | * | * | 16/19 | 2.7/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-15RM | * | * | 3/4 | 13 | 16/19 | 2.4/3.4 | 8/12 | 1.5 | <1.3 | 10 | 1 |
| MP-20R | 18 | 18 | * | * | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 15 | 1 |
| MP-20RM | * | * | 3/4 | 16 | 27/32 | 3.1/4.3 | 17/22 | 2 | <1.2 | 15 | 1 |
| MP-20RX | 26 | 26 | * | * | 46/52 | 1.8/2.5 | 30/40 | 1 | <1.3 | 15 | 1 |
Features
The seal-less design on the magnetic drive pump has a corrosion-resistant rear casing that separates the drive magnet and the magnet capsule.
- The pump body is made of raw material from Europe, stronger corrosion-resistant. You can choose CFRPP or PVDF depending on what kind of chemical liquid you send. The pump spindle can be made from ceramic and SIC. The ceramic spindle is generally applied for low corrosion. The SIC spindle is excellent for high corrosion liquid.
- The parts are standard, easy to assembling, checking, maintaining, more convenient and saving more time.
- Magnetic drive circulation pump is full-sealed with motor connecting shaft and impeller are separately equipped with magnetic materials. It is unnecessary to fit with traditional shaft seal and complete-ness sealed constitutive water pump. Avoids defects of pollution after corrosion caused by liquid leakage, that still adopts special ceramics as shaft bearing, characterizing strong resistance for abrasion and corrosion. It’s advanced performance and quality is the optimum liquid transport pump on the industrial equipment.
Factory View
CLEY TECH is one professional company to sell the high quality of Magnetic drive pumps, Miniature Diaphragm Pump, Metering Pump and Household Pumps more than 20 years.Our company specialize in the research and development of Frequency conversion constant pressure multistage Pumps, Variable frequency multistage centrifugal Pumps, Miniature shield Pumps, Intelligent shield Pumps, Horizontal centrifugal Pumps, Vertical frequency conversion multistage Pumps and miniature precision motors.
Related Products
Frequently Asked Question
The earliest one focus on magnetic pumps development in China, Famous leading small chemical pumps manufacturer in China.
To get customers’ satisfaction and to solve your problems, supply one-step magnetic pumps supply and other fittings.
Our factory import the main material PTFE from Japan, to confirm the high corrosion resistance.
Direct from factory, we are the chemical pump and water pumps main manufacturer.
It is equipped with high Class clean production plant. With 100% quality control, QA & QC teams test high pressure centrifugal pump and other water pumps to make sure the stable of product quality.
R&D teams include more professional technicians. Our company have undertaken a umber of national and provincial research project, and achieved many patents in printing area.
